Breakout board pin out

  • Drucken
  • E-Mail

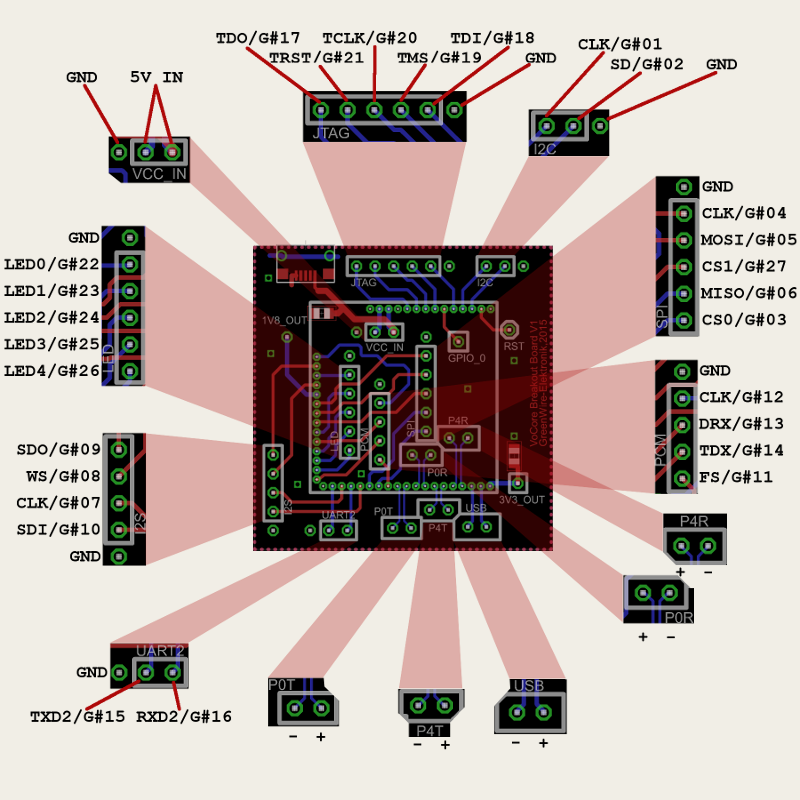

Damit Sie das Breakoutboard auch vollständig nutzen können haben wir für Sie ein erklärendes Bild angefertigt!


To give you all opportunities of using the breakout board, we created a explaining picture!

pin out

Details
Kategorie: Ergänzungen
Veröffentlicht: 01. Februar 2015

Breakout boards arrived - hurry up and get yours!

  • Drucken
  • E-Mail



Endlich ist alles da und das VoCore-Breakoutboard kann gekauft werden!


Finally everything arrived and you can now buy the vocore breakout board here!

Details
Kategorie: News
Veröffentlicht: 28. Januar 2015

New pictures from the VoCore Breakout Board

  • Drucken
  • E-Mail

UPDATE: Visit this article for new information and our shop link!

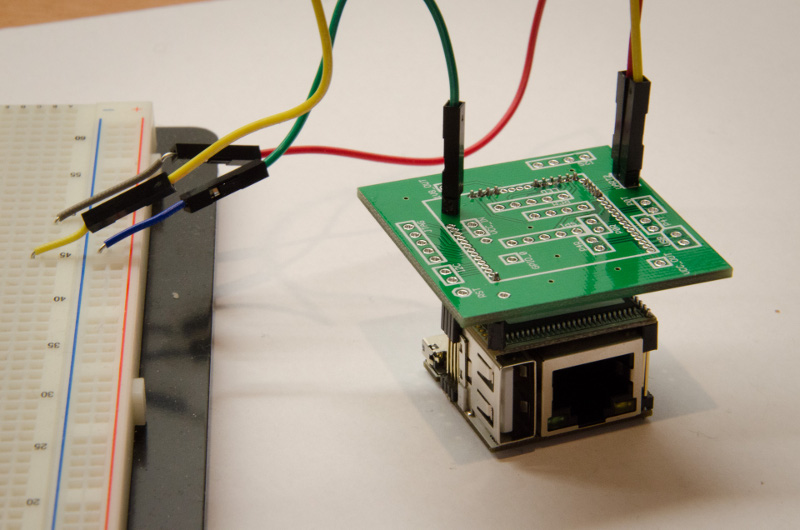

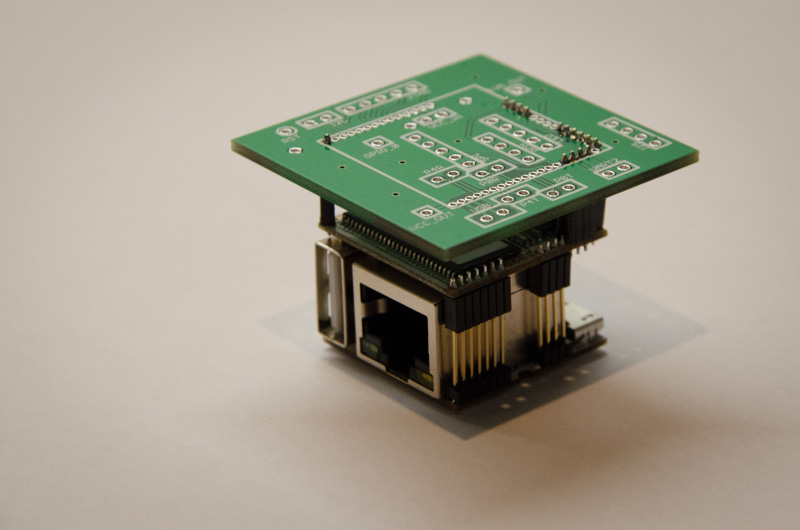

Endlich sind alle Teile da und wir konnten den ersten Versuch unternehmen, das Breakoutboard mit dem VoCore zu verbinden. Es gibt noch kleinere Schwierigkeiten, aber schon jetzt überzeugt das Ergebnis - seht selbst!


Finally all missing parts arrived and we started a first try connecting the breakout board with the VoCore. There are some small problems, but we think it is already looking very neat!



Details
Kategorie: News
Veröffentlicht: 10. Januar 2015

Breakout board now preorderable on Tindie

  • Drucken
  • E-Mail

Endlich ist es soweit: Wir haben für unsere Produkte einen Shop bei Tindie eingerichtet. Die Breakout-PCBs sind in Fertigung und spätestens ab Mitte Februar kann die Auslieferung beginnen. Bei Fragen oder Wünschen können Sie sich jederzeit an uns wenden: feedback [at] greenwire-elektronik.de

Das Breakoutboard ist ab jetzt hier (vor-bestellbar).


Finally: We made it happen and established a shop on tindie. The breakout pcbs are in production right now and at the latest in mid february we can ship them. If you have questions or whishes you can reach us anytime under feedback [at] greenwire-elektronik.de

Here you can now (pre-)order the breakout board.





Details
Kategorie: News
Veröffentlicht: 20. Januar 2015

Vocore Breakout Board - Prototype arrived

  • Drucken
  • E-Mail

UPDATE: Visit this article for new information and our shop link!

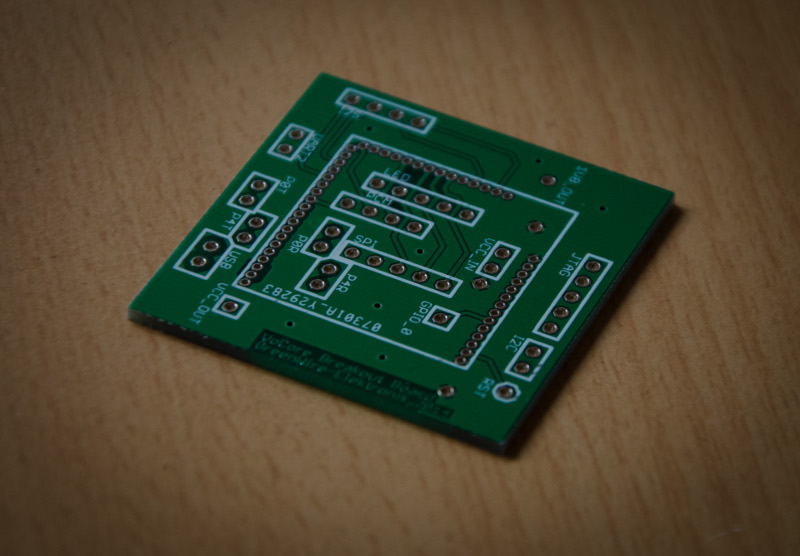

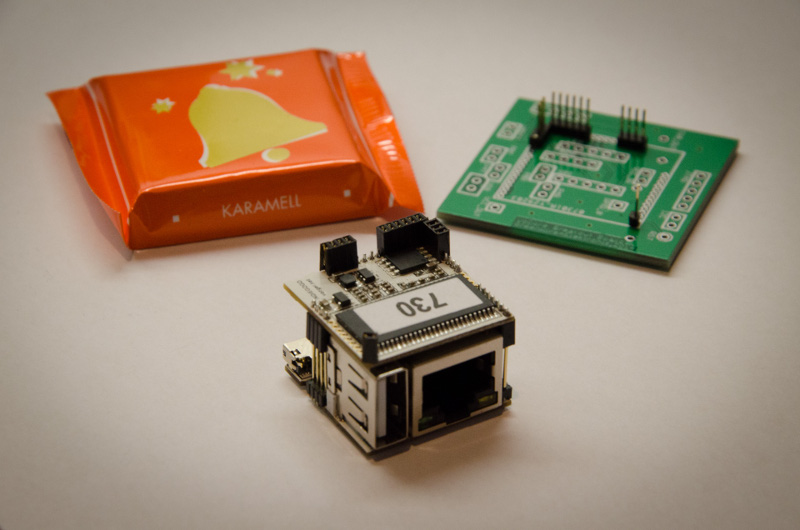

Heute morgen erreichte uns ein Paket: Die Prototypenleiterplatten sind da! Leider fehlen noch die 1,27mm-Raster-Stiftleisten, soweit sieht aber alles gut aus!
Danke für das Feedback, die finale Leiterplatte wird noch einen Spannungsregler erhalten, um auch docklose VoCore einfach anbinden zu können. Darüberhinaus wird es für jede Schnittstelle einen eigenen Masseanschluss geben.




This morning a packet arrived: The prototype pcbs are finally here. The 1.27mm pin headers are still missing, but for now everything looks good!
Thanks for all the feedback - the final pcb will have an 3.3V voltage regulator to easy access also dockless VoCores. We will add also GND pins for every interface.

Details
Kategorie: News
Veröffentlicht: 08. Januar 2015
  1. Vocore Breakout Board - Prototype status
  2. New product announced!

Seite 1 von 2

  • 1
  • 2
